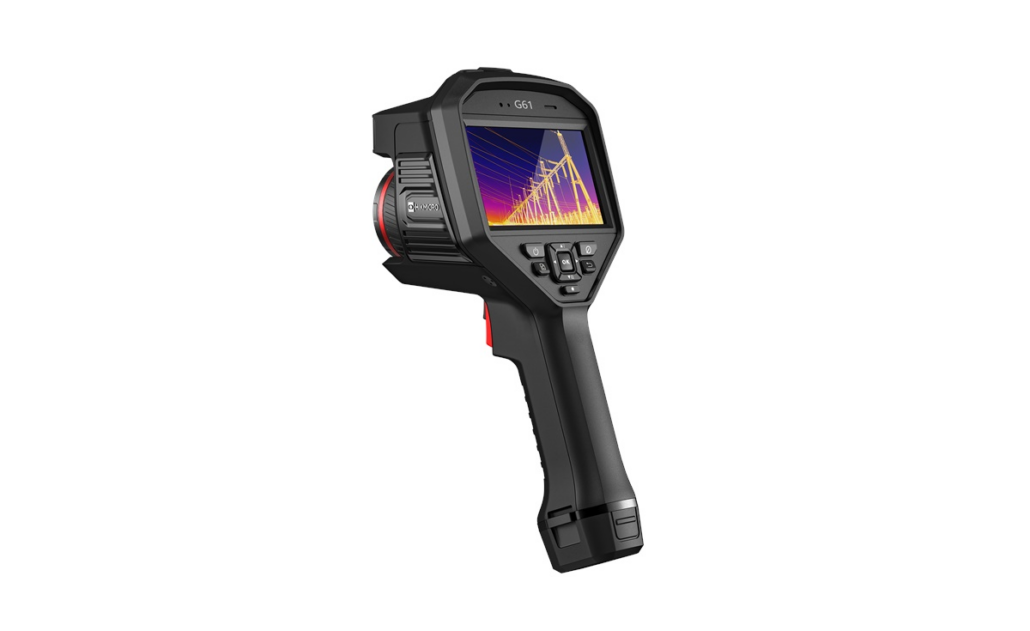

Apraksts
Infrared Image:
IR resolution: 640 x 480
Image Frequency: 50Hz
Detector Pitch: 17 μm
Spectral Range: 7.5 to 14 μm
FOV: 25 x 19°
IFOV: 0.68 mrad
Focus Mode: Laser Assisted AF, Continuous AF, AF/Manual Focus, Touch AF
Min. focus distance: 0.25m
SuperIR: Yes, 1280 x 960p
Image specification:
Camera: 3264x2448p (8Mp)
Display: 800×480, 4.3″ LCD touch screen
Digital Zoom: 1.0 to 8.0x
Image Modes: Thermal, Vsual, Fusion, Picture in Picture, Blending.
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red.
Measurement:
Temperature range: -20 to 650°C
Measuring tools: Center spot, Hot spot, Cold spot
Inspection Route: Yes
Data Storage and file specification:
Storage Media: Memory card 64Gb
Image Storage Capacity: About 60.000 Images
Video Storage Capacity: About 54 hours
Video File Format: MP4 video and Radiometric video
General parameters:
Wi-Fi: Yes, 802.11 (2.4 and 5 GHz)
Bluetooth: Yes, 4.2v
USB interface: USB Type;C
GPS and Compass: Yes
Laser Distance meter: up to 50m
Battery: Rechrgeable Li-ion battery.
Operating time: Appox. 6 hours
Chargung time: 4 hours
Power saving: Manual Sleep and Auto Power-off
Protection Level: IP54 and drop test 2m
Stogare temperature: -20°C +60°C
Weight: 1100g
Dimension: 284 x 120 x 124 mm
