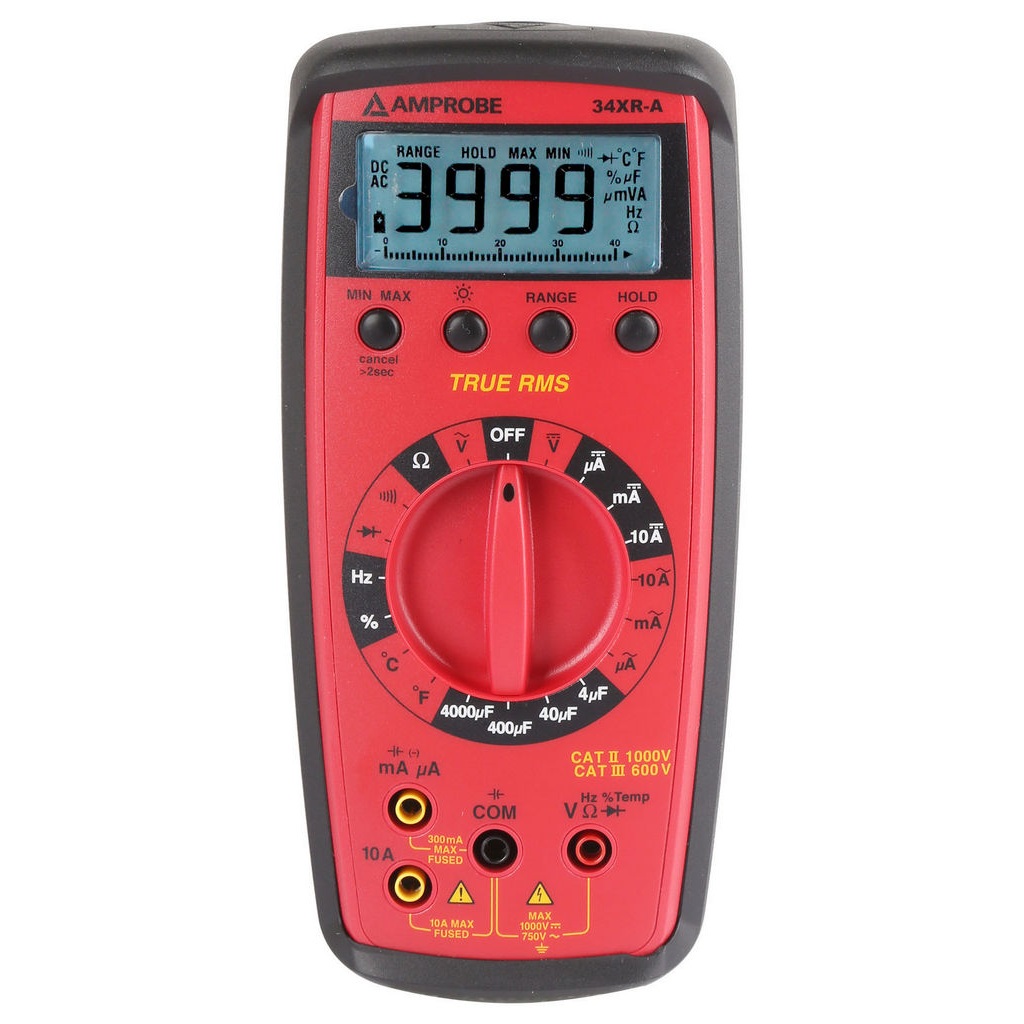

Amprobe 34XR-A TRMS Digital Multimeter with Temperature measurement, CAT III, 600V
The Amprobe 34XR-A Digital Multimeter, a True-rms digital multimeter with temperature and backlight for contractors and field service technicians.
Features
Autoranging: Display with 3 3/4-digit LCD, 3999 counts, and 41-segment analog bar graph
Display Update Rate: 2 times per second
Operating Temperature: 0 °C to 45 °C, < 70% relative humidity
True-RMS Multimeter with Temperature and Backlight
Overrange Indication
Auto Power Off to Save Battery Life
Min/Max, Data Hold, and Range Lock
Separate Door for Easy Battery and Fuse Access
Magne-Grip™ Holster with Magnetic Hanging Strap
Specifications
DC Voltage Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V
Accuracy: ± (0.5 % rdg + 1 dgt)
Resolution: 100 µV
AC Voltage Ranges (45 Hz - 2 kHz): 400 mV, 4 V, 40 V, 400 V, 750 V
Accuracy:
400 mV (45-100 Hz): ± (1.2 % rdg + 8 dgts)
750 V (45 Hz - 1 kHz): ± (2.0 % rdg + 8 dgts)
Other Ranges (45-500 Hz): ± (1.2 % rdg + 8 dgts)
Other Ranges (500 Hz - 2 kHz): ± (2.0 % rdg + 8 dgts)
Resolution: 100 µV
DC Current Ranges: 400 µA, 4 mA, 40 mA, 300 mA, 10 A
Accuracy:
400 µA - 300 mA: ± (1.0 % rdg + 1 dgt)
10 A: ± (2.0 % rdg + 3 dgts)
Resolution: 0.1 µA
AC Current Ranges (45 Hz - 1 kHz): 400 µA, 4 mA, 40 mA, 300 mA, 10 A
Accuracy:
400 µA - 300 mA: ± (1.5 % rdg + 8 dgts)
10 A: ± (2.5 % rdg + 10 dgts)
Resolution: 0.1 µA
Resistance Ranges: 400 mΩ, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
Accuracy:
400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ: ± (1.0 % rdg + 4 dgts)
40 MΩ: ± (2.0 % rdg + 5 dgts)
Resolution: 100 mΩ
Continuity Audible Indication: < 35 mΩ
