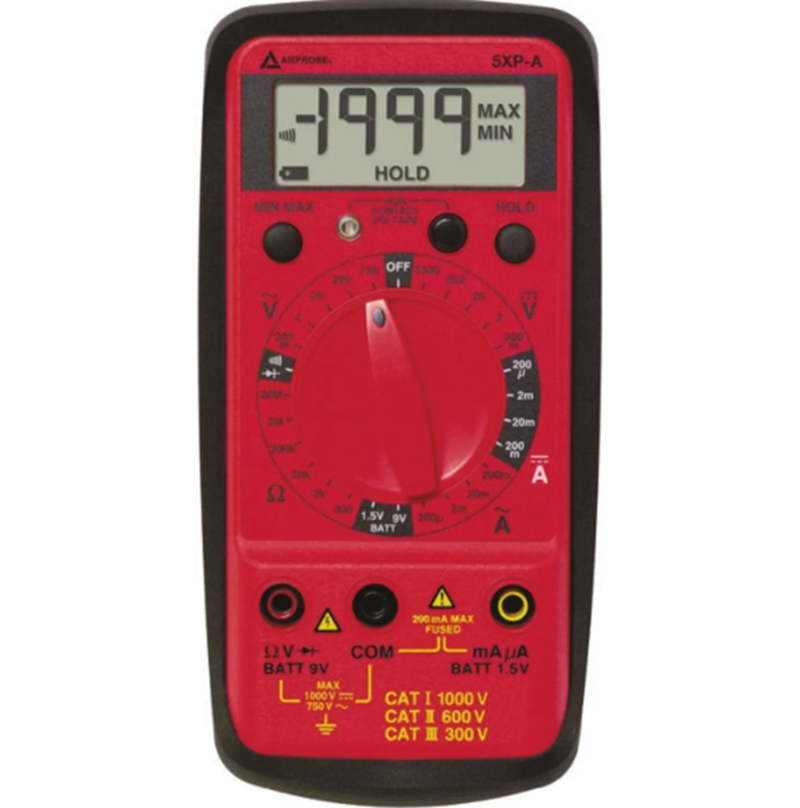

Amprobe AMP 5XP Digital multimeter
A compact full-purpose digital multimeter with a 3½ digit crystal display (a maximum reading of 1999). The multimeter has unique VolTect™ non-contact voltage (NVC) detection.
Technical specifications:
DC Volts: 200 mV, 2 V, 20 V, 200 V, 1000 V, (± 1,0 % + 1)
AC Volts (45…500 Hz): 200 mV, 2 V, 20 V, 200 V, 750 V, (± 1,5 % + 5)
DC Current: 200 μA, 2 mA, 20 mA, 200 mA, (± 1,5 % + 1)
AC Current: 200 μA, 2 mA, 20 mA, 200 mA, (± 2,0 % + 5)
Resistance: 200 ?, 2 k?, 20 k?, 200 k?
Continuity audible indication: < 70 ?
Diode test
Battery test: 1,5 V ja 9 V, (± 3,5 % + 2)
Data Hold
Min./Max.
Overload protection
CAT I 1000 V / CAT II 600 V / CAT III 300 V
Measures and weight: 155 x 72 x 32 mm, approx. 210 g
One-year warranty
Included accessories:
Pair of test leads
9 V battery (installed)
Magne-Grip™ holster with magnetic hanging strap
User manual
